Descripción

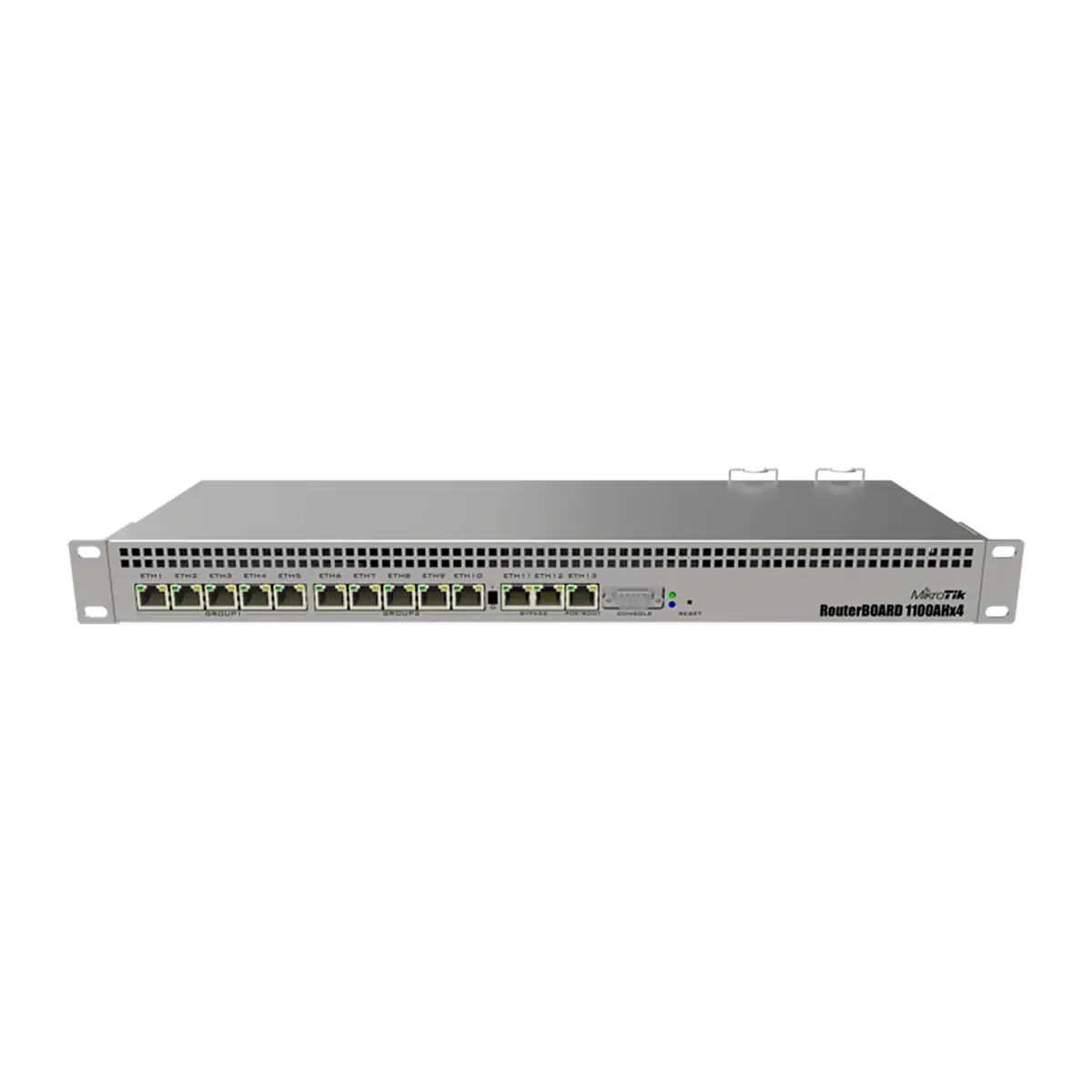

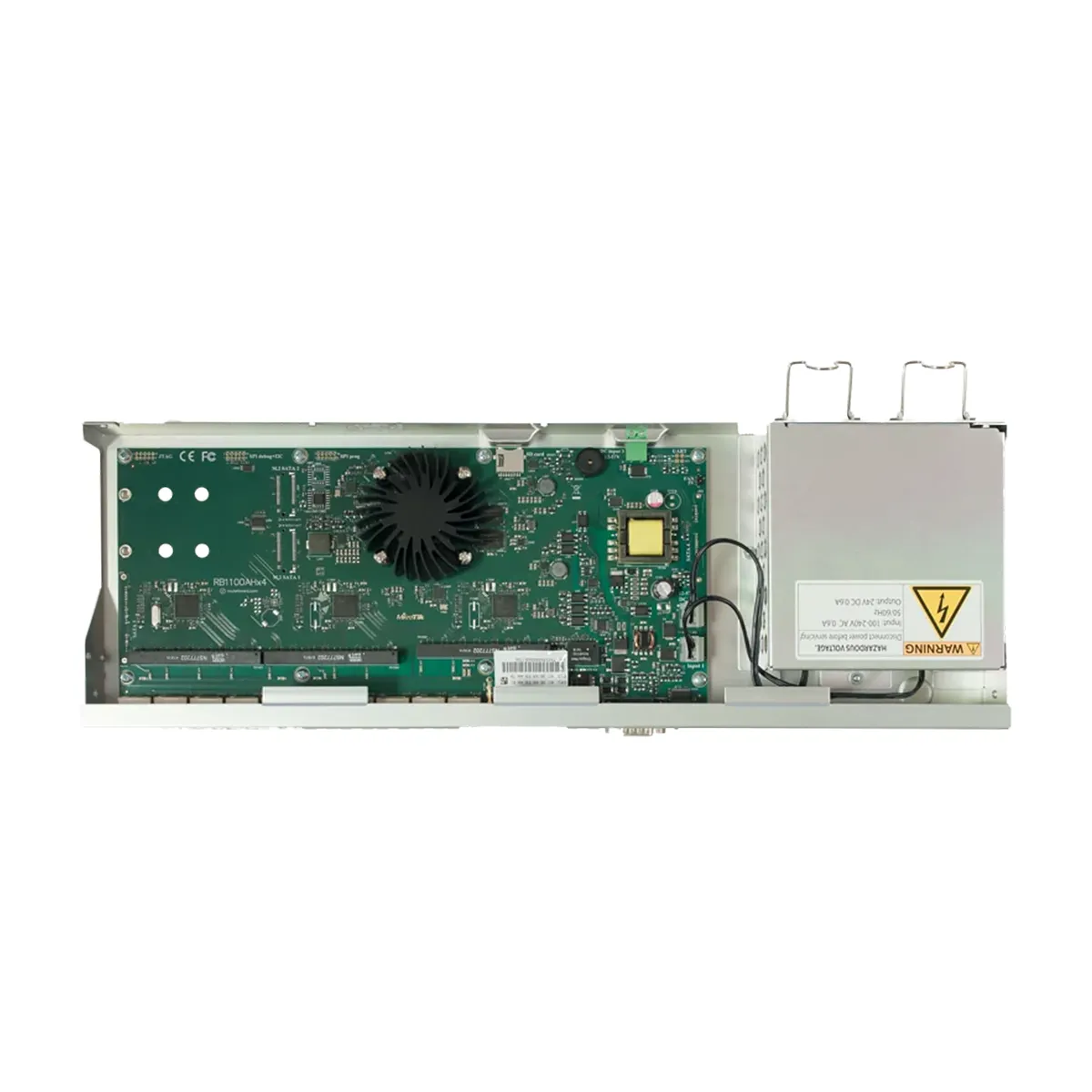

El RB1100AHx4, un router con 13 puertos Gigabit Ethernet, alimentado por una CPU Alpine AL21400 de Annapurna con cuatro núcleos Cortex A15 a 1,4 GHz cada uno, para un rendimiento máximo de hasta 7,5 Gbit. El dispositivo admite aceleración de hardware IPsec (hasta 2,2 Gbps con AES128).
La unidad se suministra con carcasa para montaje en bastidor 1U, puerto serie RS232 y fuentes de alimentación redundantes duales (con alimentación de telecomunicaciones de -48v CC y compatibilidad con 802.3at/af).
Especificaciones
| Details | |
|---|---|
| Product code | RB1100x4 |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Switch chip model | RTL8367 |
| Dimensions | 443 x 148 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
Alimentación
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage | -48, 12-57 V |
| Max power consumption | 20 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 13 |
Periféricos
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
Otros
| Details | |
|---|---|
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Beeper | Yes |
Certificación
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
