Descripción

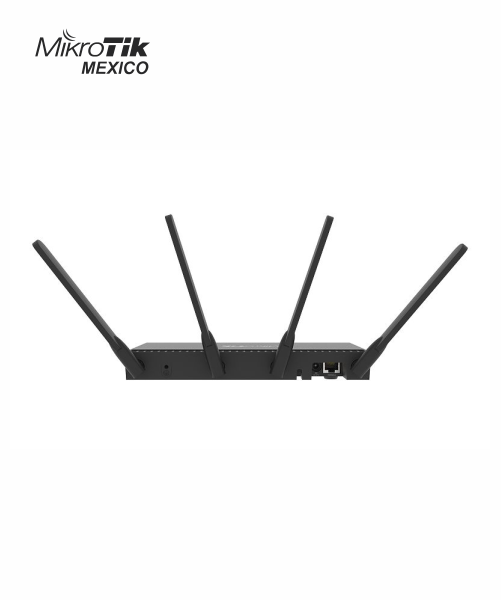

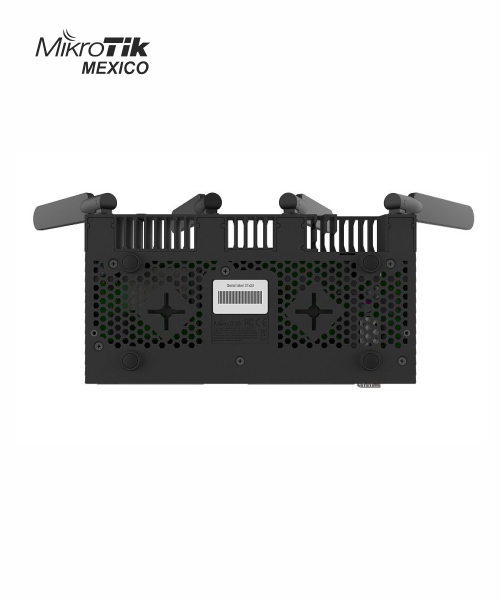

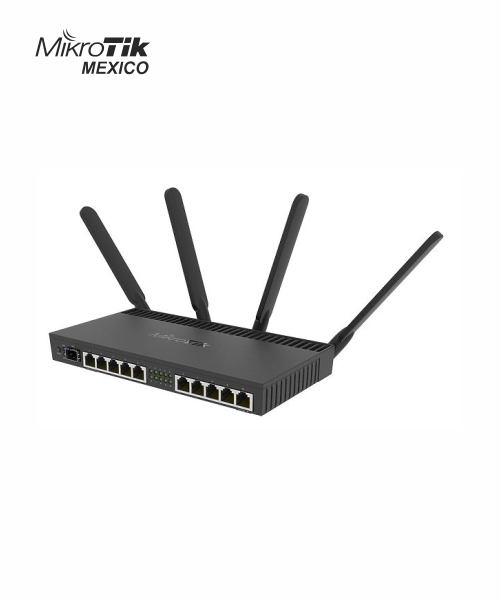

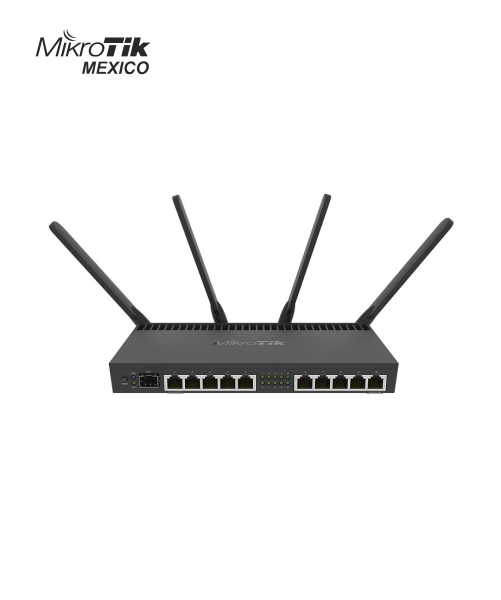

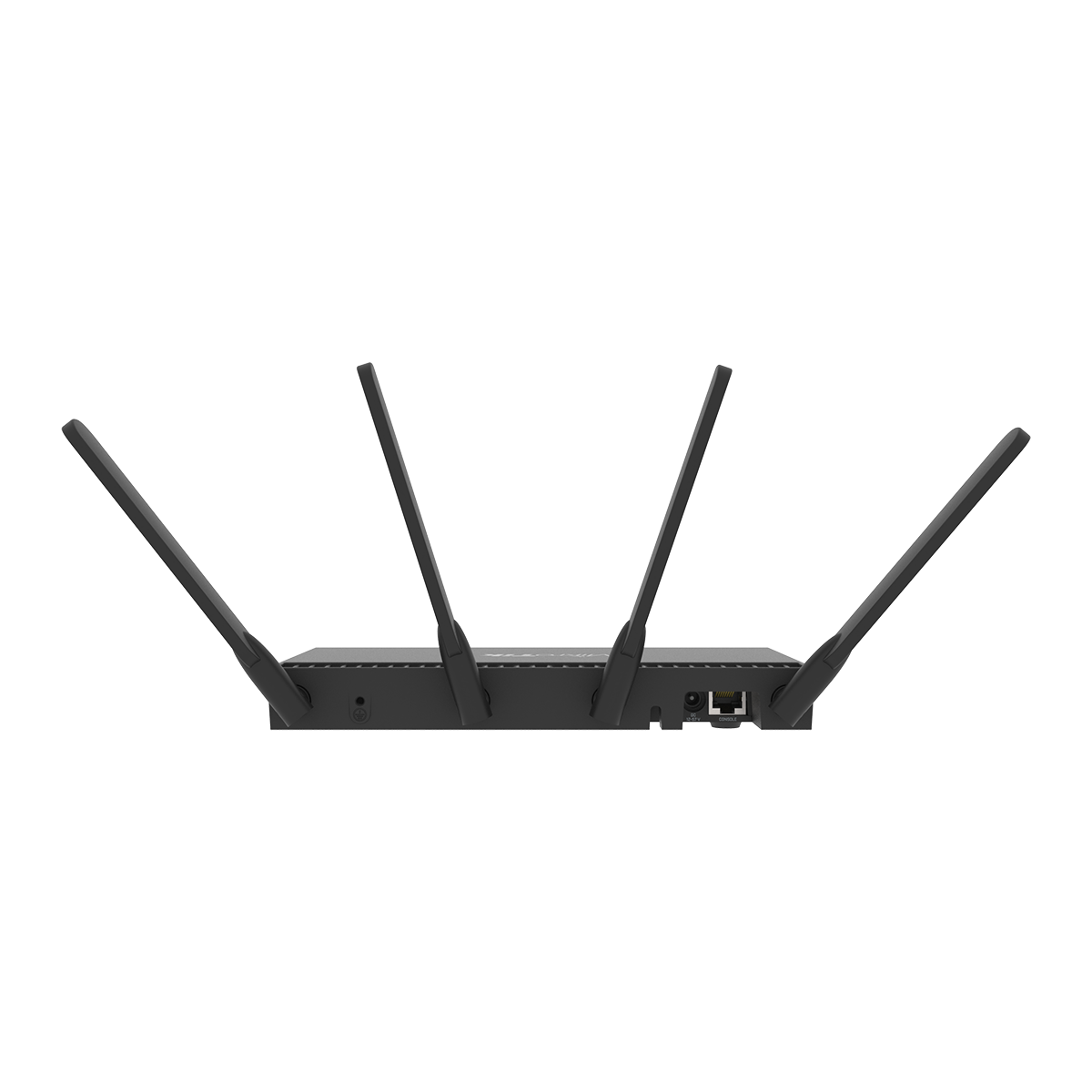

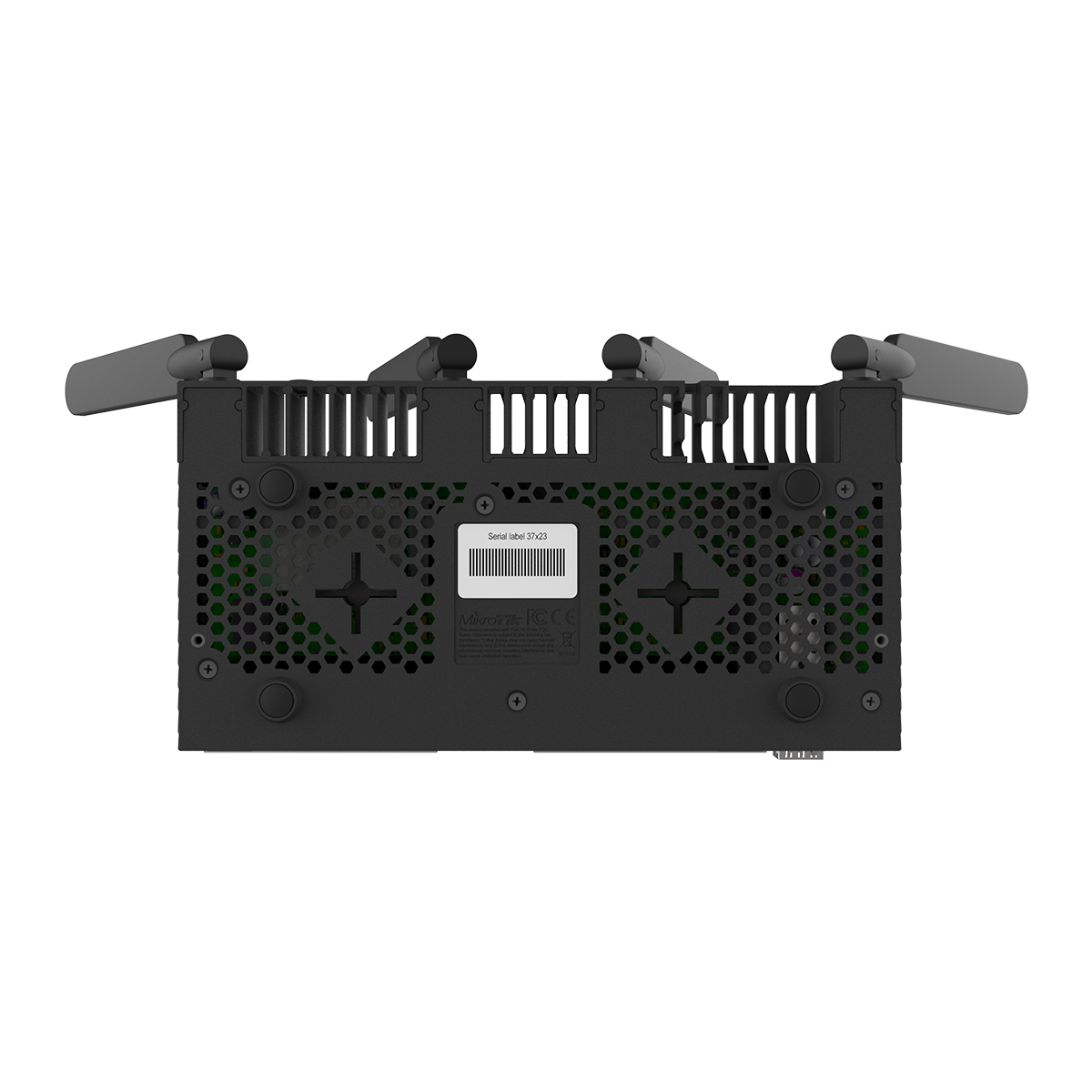

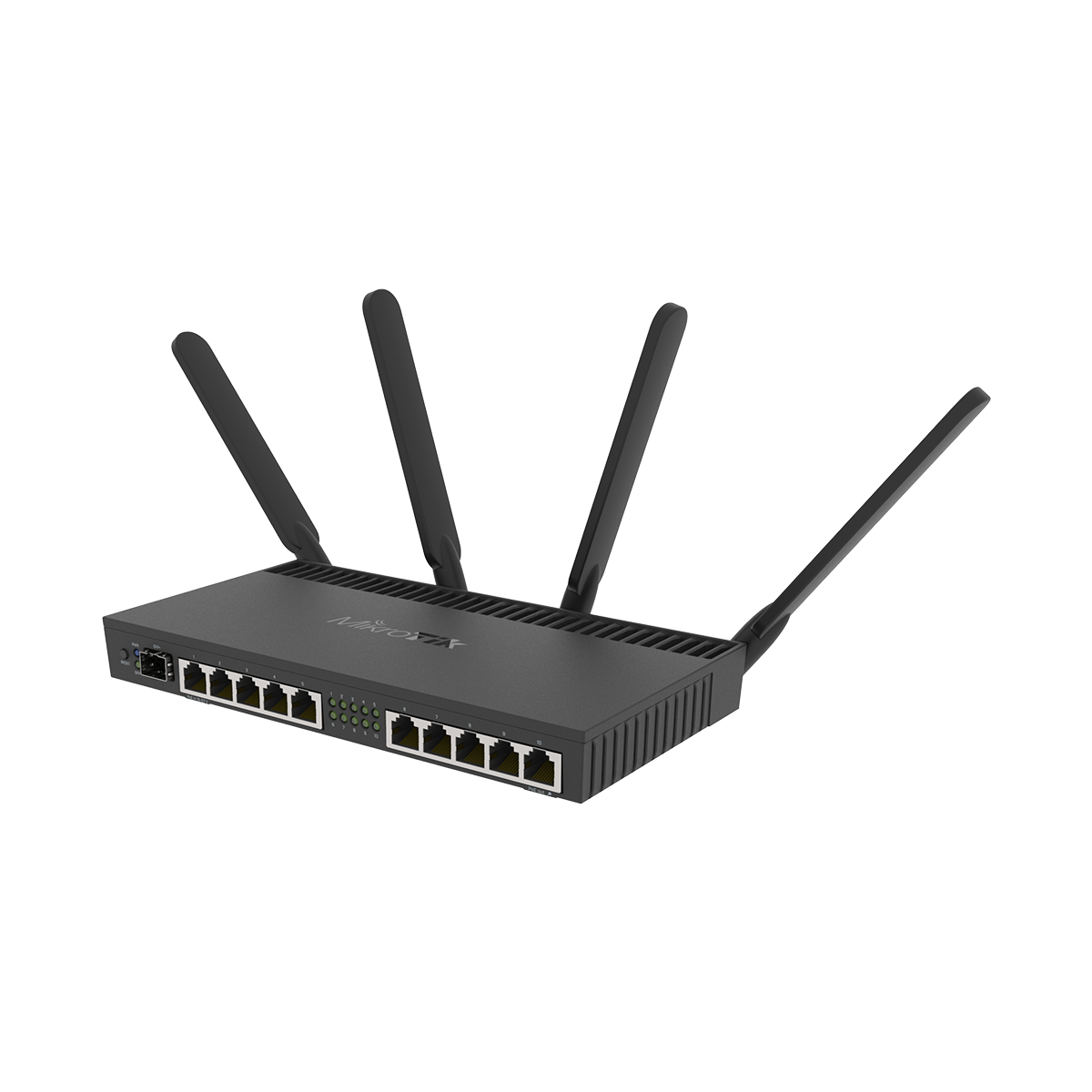

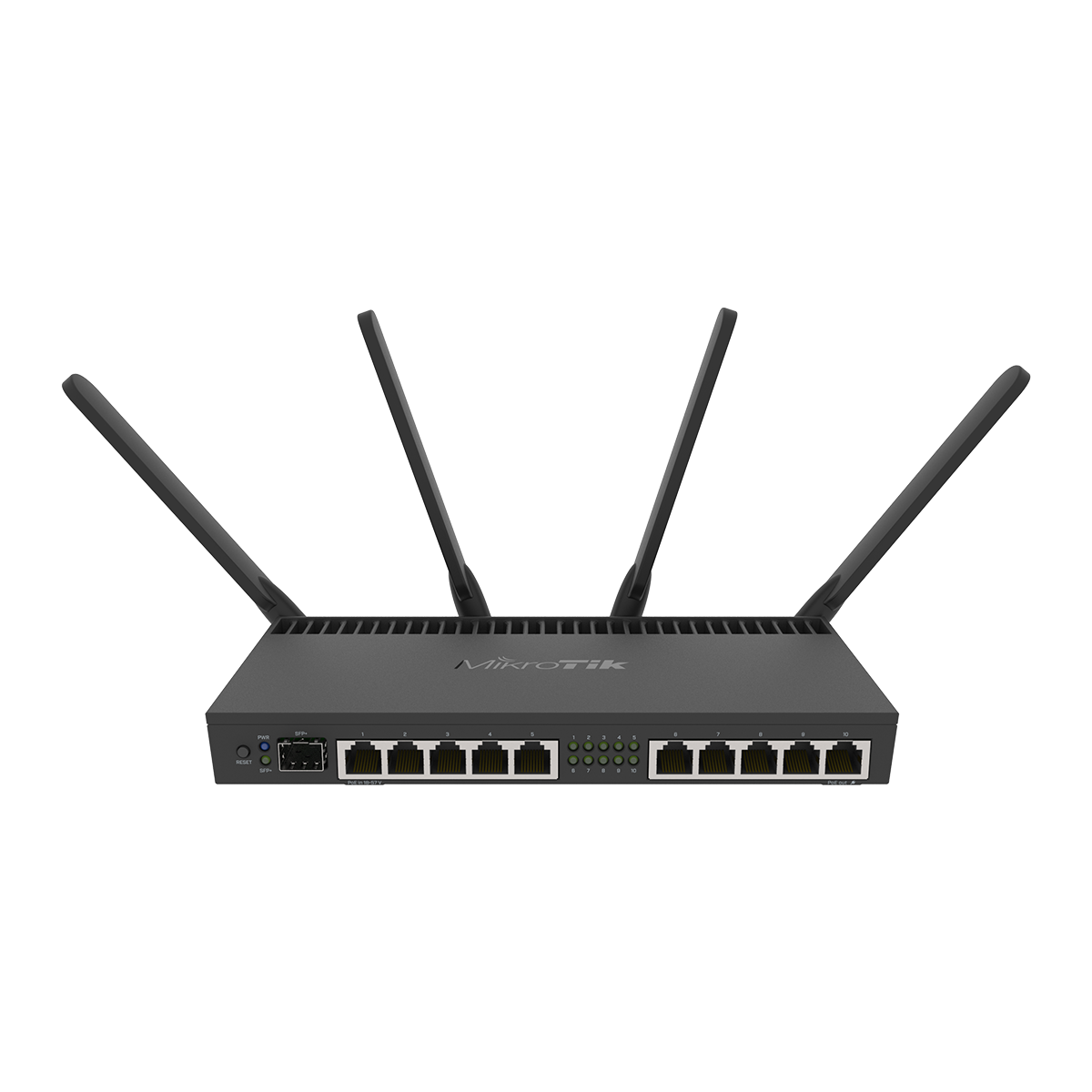

RB4011iGS+5HacQ2HnD-IN
La serie de los RB4011, son routers sorpendentemente poderosos con 10 puertos Gigabit, interfaces SFP+ de 10Gbps, y protocolo IPsec, todo por un gran precio.
El RB4011 utiliza un CPU quad core Cortex A15, mismo que nuestro modelo de nivel carrier RB1100AHx4. La unidad está equipada con 1Gb de RAM, puede proveer PoE en el puerto #10, y viene con un gabinete metálico en color negro mate, compacto y profesional.
El RB4011iGS+5HacQ2HnD-IN (modelo WiFi) es de doble banda, unidad de cuatro cadenas con un rango de 1733 Mbps en 5GHz. Para dispositivos heredados, la unidad también cuenta con una tarjeta inalámbrica de 2.4 Ghz de doble cadena, y un puerto miniPCI-e-
Especificaciones del producto
| Details | |
|---|---|
| Product code | RB4011iGS+5HacQ2HnD-IN |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 228 x 120 x 30 mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 45°C |
Alimentación
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE out | Passive PoE up to 57V |
| PoE in input Voltage | 18-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max out per port output (input > 30 V) | 420 mA |
| Max out per port output (input < 30 V) | 600 mA |
| Max total out (A) | 600 mA |
| Max power consumption | 44 W |
| Max power consumption without attachments | 23 W |
Tarjeta inalámbrica
| Details | |
|---|---|
| Wireless 5 GHz number of chains | 4 |
| Wireless 5 GHz Max data rate | 1733 Mbit/s |
| Wireless 5 GHz standards | 802.11ac MU-MIMO |
| AC speed | AC2000 |
| Antenna gain dBi for 5 GHz | 3 |
| Wireless 5 GHz chip model | QCA9984 |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | R11e-2HnD |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 10 |
Fibra
| Details | |
|---|---|
| SFP+ ports | 1 |
Periféicos
| Details | |
|---|---|
| MiniPCI-e slots | 1 |
| Serial port | RJ45 |
Otros
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Especificaciones inalámbricas
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 33 | -96 |
| 54MBit/s | 29 | -81 |
| MCS0 | 33 | -96 |
| MCS7 | 28 | -77 |
| MCS9 | 26 | -72 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 28 | -100 |
| 11MBit/s | 28 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 24 | -79 |
